iseg MMS system

MMS - UNIVERSAL LOW/HIGH VOLTAGE MULTICHANNEL POWER SUPPLY SYSTEM


The 19“/ 6U Eurocassette standard based modular high voltage system is the iseg vendor specific multichannel standard. With a wide set of modules the MMS system provides the most advanced features in high voltage generation. Many international customers trust in the reliability, precision and quality of iseg modules. Together with the browser based control and configuration server iCS iseg delivers cutting-edge solutions for high voltage applications.

Many users world-wide trust in the reliability, precision and quality of established MMS hardware. Offering a variety of chassis from a single slot up to 10 slots for desktop or 19“ rack-mount use the MMS system is scalable from small to large applications. MMS Systems can be equipped with either the W-IE-N-ER MPOD controller or the new iseg CC24 controller.

The iseg CC24 Master with embedded Linux hardware provides EPICS IOC, SNMPservice, easy webbrowser based configuration and control, TCP/IP protocols and much more directly from unit without additional hardware or setup efforts.

MMS SYSTEM

EHS

EHS

High Precision Versatile HV Module in Multiple Floating Versions

EBS

EBS

Bipolar 4 Quadrant High Voltage Module with CFG

EDS

EDS

Distributor HV Module with Common Floating Ground

ESS

ESS

Single Channel 2 Quadrant HV Module with Floating Ground

LV Modules

LV Modules

Multichannel Low Voltage Modules

CONTROLLER

CONTROLLER

Controller Module for use with MMS compatible ECH crate series and modules

ECH CRATES

ECH CRATES

2/4/8/10 slot MMS crates with Ethernet/CAN interface

MPOD CRATES

MPOD CRATES

HV/LV chassis, compact design with ruggedized mechanics

MAIN FEATURES

  • Two manufacturers - one standard
  • Highest channel density to save valueable installation space
  • Best ripple and noise characteristics
  • Up to 10 slots and 480 channels per crate
  • Up to 30 kV, up to 100 W per channel
  • Pure LV, HV compatible and mixed setup crates available
  • High quality precision low and high voltage supplies
  • Compatible controller boards for networking and software control

CUSTOMER STORIES

  • LHC

    Large Hadron Collider (LHC) at CERN equipped with iseg HV

    The Large Hadron Collider (LHC) is the world´s largest particle accelerator, a 27 kilometre long ring of superconducting magnets. In this accelerator there are four particle detectors (LHCb, Atlas, Alice and CMS), these are the four experiments from CERN. iseg delivered EHS and EDS modules for the LHC-B, Atlas and Alice detector.

    more information: CERN Homepage

  • Super-Kamoikande

    Super-Kamiokande project in Japan equipped with iseg HV

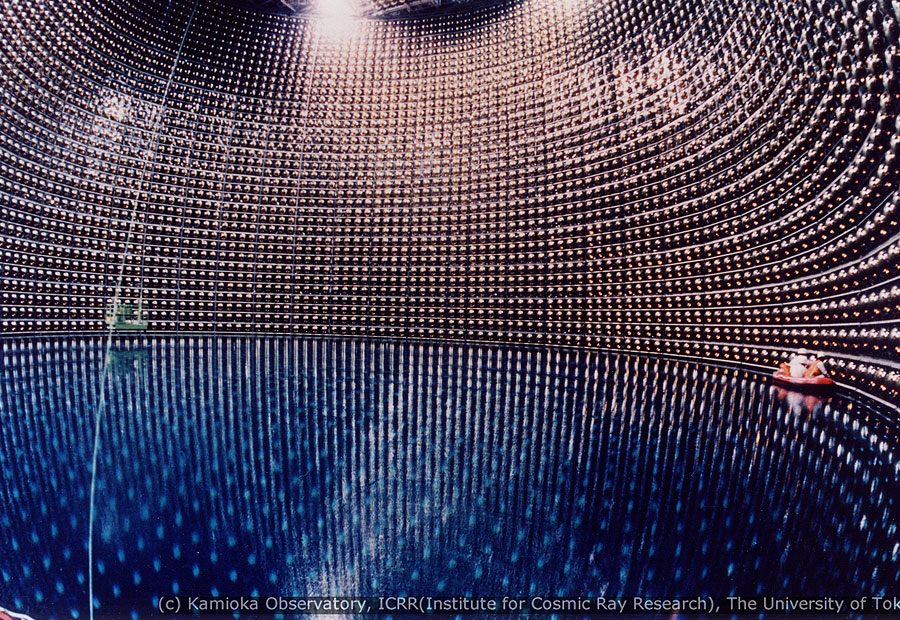

    Super-Kamiokande is aneutrino detector near the Japanese community Kamioka. The detector observe in addition to the observation of neutrino proton decay. iseg delivered 510 modules of an adaptation of the distributor HV-modules EDS 18325p-K, a modified module EDS 18330p with 2.5 KV output voltage and 24 channels.

    more information: Super-Kamiokande Homepage
